SKU: USOTS-20XJVCR

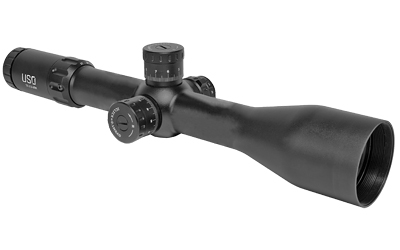

US Optics TS-Series TS-20X Rifle Scope – 2.5-20x50mm 34mm FFP JVCR

The USO TS-20X riflescope is built to meet the rigorous demands of long-range hunters and precision competitors. Whether you are gearing up your production class PRS Rifle or custom building your precision hunting rig the TS-20X will help you maximize your rifle?s performance capabilities. It?s wide range magnification and parallax adjustment allows you to dial down to 2.5 power for up close shots and dial up to 20 power when you need to reach out past 1000 yds. It?s top tier optical system rugged 34mm aluminum body zero stop and ample amounts of elevation and windage travel will ensure that you are more than ready for your next endeavor.

  • Magnification: 2.5-20x
  • Diopter: +2/-3
  • Exit Pupil Diameter: 2.5mm @ 20X
  • 20mm @ 2.5X
  • Parallax Adjustment: 10 yds – Infinity
  • 20X Field of View @ 100 meters = 2.2 meters
  • 12X Field of View @ 100 meters = 3.8 meters
  • 3X Field of View @ 100 meters = 11.3 meters
  • 2.5X Field of View @ 100 meters = 14 meters
  • Eye Relief: 2-3 inches
  • Obj. Lens Diameter: 50mm
  • Tube Diameter: 34mm
  • Overall Length: 14.64 in
  • Ocular Lens Diameter: 34mm
  • Weight: 0.815 kg
  • Reticle Illumination: Red
  • Battery: CR 2032
  • Finish Color: Type III Hard Anodized Matte Black
  • Knob: 1/10 mil (for MIL Reticles) / 1/4 MOA (for MOA Reticles)
  • Elevation Travel: 32 mils total travel;
  • 24.3 mils of travel on 30 MOA down
  • When the Optional Zero Stop is set adjustments are limited to 9.5 MILS/23.75 MOA
  • Windage Knob: 1/10 mil (for MIL Reticles) / 1/4 MOA (for MOA Reticles)
  • Windage Adjustment Range: 30 mils of total 15L/15R
  • Reticle: First Focal Plane JVCR

$1,515.25

Out of stock
